| Supply Ability : | 800 tons per day |
| Price : | To be negotiated |
| Brand Name : | Xinyue Steel |
| Model Number : | SSAW Steel Pipe |
| Certification : | API CE |
| Payment Terms : | L/C, T/T |
| Delivery Time : | 7 - 15 days |

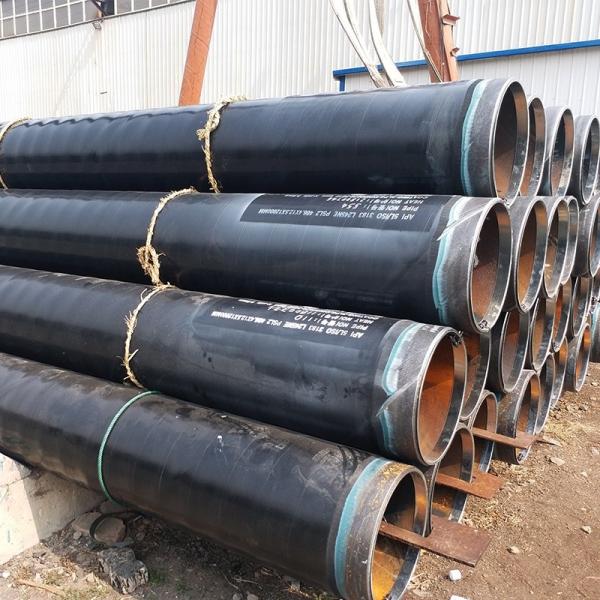

Product Name | SSAW (Spiral Submerged-arc Welded) Steel Pipe |
Usage | Used for low-pressure liquid delivery, such as water, gas, and oil. |
Standard | API 5L PSL1/ PSL2 , ASTM A252, EN10219, AWWA C200, ASTM A53, BS, JIS, etc... |
ASTM A 53 | Gr. A, Gr B, Gr C, Gr.D |
API 5L | A, B, X42, X46, X52, X56, X60, X65 X70 |
GB/T9711 | L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555 |
ASTM A252 | Gr.1 Gr.2 Gr.3 |
EN 10219 | S235JR, S275JR, S355JR, S355JOH, S355J2, S420... |
Outer Diamter | 219.1mm - 4064mm (8" - 160") |
Wall Thickness | 4 mm - 25.4mm |
Length | Up to 96m |
Spiral Steel Pipe is made by rolling low-carbon carbon structural steel or low-alloy structural steel strip according to a certain spiral angle (called forming angle) into a tube blank, and then welding the tube seam together. It can be made with a narrower Strip steel produces large diameter steel pipes. Its specifications are expressed by outer diameter * wall thickness, and the welded pipe shall be ensured that the hydraulic test, the tensile strength of the weld and the cold bending performance must meet the requirements.
Tianjin Xinyue Steel Group is a professional manufacturer of SSAW
steel pipes with over 30 years experience.
Xinyue SSAW steel pipe is widely applied in petroleum and natural
gas transmission, urban heating network, water supply pipeline,
sewage discharge, steel structure, bridges, foundation piling, port
machinery and electrical power, etc.
Q1: What's the main application of SSAW steel pipe?
A1: SSAW is widely used as water transmission pipe, Line pipe, and
Piling Pipe.
Q2: What's Xinyue's Product Range for SSAW?
A2: Xinyue's Product Range for SSAW steel pipe is as below:
OD: 219.1mm to 4064mm
WT: 4mm-25.4mm
Length: up to 70m.
Q3: What kind of surface treatment can you offer?
A3: We can offer Anti-rust coating, bitumen coating, FBE, 2PE,
3LPE, Polyamide Epoxy, Rich Zinc Primer, Polyurethane, etc.
Q4: What's the MOQ for SSAW steel pipe?
A4: MOQ for SSAW steel pipe is 1 ton.
Q5: Do you provide other steel pipes?
A5: Xinyue's main products include ERW, LSAW, SSAW, SMLS,
Scaffolding, Couplers and pipe fitting. And we provide carbon
steel, alloy steel, and stainless steel products.
|
|
