| Supply Ability : | 800 tons per day |
| Price : | To be negotiated |
| Brand Name : | Xinyue Steel |
| Model Number : | SSAW Steel Pipe |
| Certification : | API CE |
| Payment Terms : | L/C, T/T |
| Delivery Time : | 7 - 15 days |

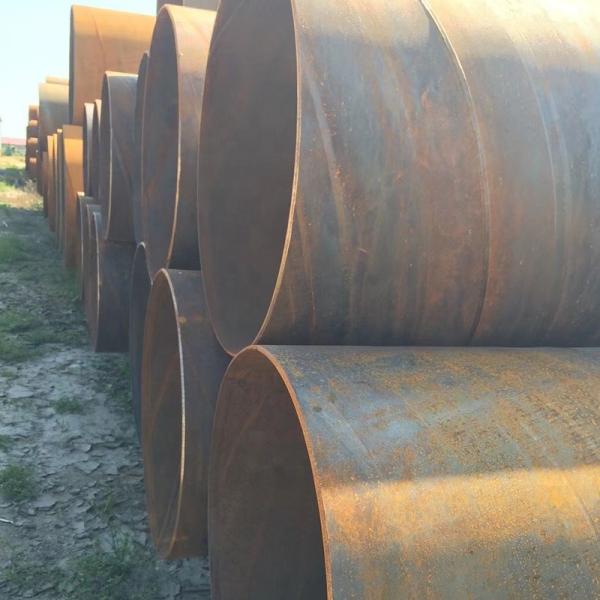

Product Name | SSAW (Spiral Submerged-arc Welded) Steel Pipe |
Usage | Used for low-pressure liquid delivery, such as water, gas, and oil. |
Standard | API 5L PSL1/ PSL2 , ASTM A252, EN10219, AWWA C200, ASTM A53, BS, JIS, etc... |
ASTM A 53 | Gr. A, Gr B, Gr C, Gr.D |
API 5L | A, B, X42, X46, X52, X56, X60, X65 X70 |
GB/T9711 | L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555 |
ASTM A252 | Gr.1 Gr.2 Gr.3 |
EN 10219 | S235JR, S275JR, S355JR, S355JOH, S355J2, S420... |
Outer Diamter | 219.1mm - 4064mm (8" - 160") |
Wall Thickness | 4 mm - 25.4mm |
Length | Up to 96m |
Advantages of spiral welded pipe:
(1) Steel pipes of different diameters can be produced using strip steel of the same width, and
steel pipes of large diameter can be produced from narrow strip steel.
(2) Under the same pressure conditions, the stress of the
spiral welded seam is smaller than that of the straight seam, which is 75% to 90% of that of the straight seam welded pipe, so it can withstand greater pressure. Compared with the straight seam welded pipe of the same outer diameter, the wall thickness can be reduced by 10% to 25% under the same pressure.
(3) The size is accurate, the general diameter tolerance does not exceed 0.12%, the deflection is less than 1/2000, and the ovality is less than 1%. Generally, the sizing and straightening process can be omitted.
(4) Continuous production is possible. In theory, long steel pipes can be produced, with small head and tail loss, and can
increase the metal utilization rate by 6% to 8%.
(5) The equipment is light in weight and low initial investment. It can be made into a trailer-type mobile unit to directly produce welded pipes at the construction site where the pipeline is laid.
Xinyue has invested several production bases in Tianjin,hebei and shandong Province, manufacturing ERW Steel Pipe,LSAW Steel pipe,SSAW STEEL PIPE, Seamless Steel Pipe,OCTG Tubing& Casing,Drill Pipe,SSAW Steel pipe,Hollow Section Tube,Scaffolding and couplers.
Q1: What's the main application of SSAW steel pipe?
A1: SSAW is widely used as water transmission pipe, Line pipe, and Piling Pipe.
Q2: What's Xinyue's Product Range for SSAW?
A2: Xinyue's Product Range for SSAW steel pipe is as below:
OD: 219.1mm to 4064mm
WT: 4mm-25.4mm
Length: up to 70m.
Q3: What kind of surface treatment can you offer?
A3: We can offer Anti-rust coating, bitumen coating, FBE, 2PE, 3LPE,
Polyamide Epoxy, Rich Zinc Primer, Polyurethane, etc.
Q4: What's the MOQ for SSAW steel pipe?
A4: MOQ for SSAW steel pipe is 1 ton.
Q5: Do you provide other steel pipes?
A5: Xinyue's main products include ERW, LSAW, SSAW, SMLS, Scaffolding, Couplers and pipe fitting. And
we provide carbon steel, alloy steel, and stainless steel products.
|
|
